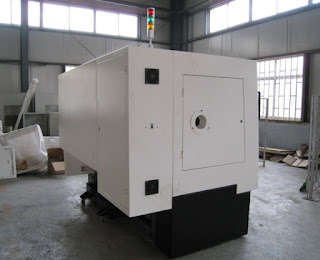

Alloy Wheel Polishing CNC Machine CK6190W Exported To Germany

 Alloy Wheel Polishing CNC Machine CK6190W is a Heavy Duty Wheel Repair Machine specially designed to process big wheels more than more than 30 inches. These car CNC wheel lathes are your best choice for wheel machining, super-finishing, and maintenance. CK6190W wheel CNC lathe is high precision, cost-effective and space-saving. Alloy wheel lathe CK6190W has the characteristics of high quality, high precision, and high efficiency and is composed of self-made mechanical parts such as the cast bed, spindle, fixing chuck and feeding mechanism, the imported numerical control system, the automatic measuring system, the famous brand servo motors and the auxiliary parts like lubrication, light, and cooling. Our wheel repair machine has detection scanning automatic programming wheel drawing machine. The Alloy Rim Repair CNC Lathe function is further improved on the basis of the original programming automatic wheel turning machine. No need for manual programming to measure curves which can be realized fully automatically.

This customer had already bought a wheel CNC lathe some days before, now his car repair company expanded its business, so he needed one more similar wheel CNC machine. But this time he needed a bigger model. After confirming the maximum wheel size, the customer stated that he needed the wheel lathe for the process max wheel size of about 30 inches. We recommended Alloy Wheel Polishing CNC Machine CK6190W to him, and he found it very suitable after checking the parameters. He asked for a PI directly and arranged to pay the deposit.

After the Alloy Wheel Polishing CNC Machine CK6190W, he expressed he very much trusts us and does not need to come to check. So we sent him the wheel repair lathe operation video and detailed pictures. He was very satisfied.

Alloy Wheel Polishing CNC Machine CK6190W Specifications

Project name	Unit	Technical parameters
Machining wheel diameter	Inch	30”
Max. workpiece length	mm	750
Probe measuring direction		X、Z
Detection type		Laser
Machining accuracy		IT6~IT7
Surface roughness	um	Ra0.8~1.6
Main transmission form		Independent spindle; step-less frequency conversion
Range of spindle speed	rpm	150~2000
Main motor power	kw	11
Fast-moving feed	mm/min	X – axis:5000   Z – axis:8000
Repeat positioning accuracy	mm	X – axis:0.01    Z – axis:0.015
Standard accessories		4-station electric tool
Repeat positioning accuracy(mm)	mm	0.008
Section of turning tool(mm)	mm	25×25

Main Features of Alloy Wheel Polishing CNC Machine CK6190W

◆Wheel repair special CNC lathe. The new design, new structure, new technology.

◆Achieve the wheel surface profile measurement and data collection and Program Optimization.

◆Automatic precision repair and machining in accordance with the curve of the wheel surface.

◆Self-developed curve optimization software. Multilingual language interface. Installation and operation are simple.

◆Spindle frequency step-less speed.

◆X / Z axis servo drive.

◆Manual jaw self-centering chuck.

◆Machine guard full protection.

◆Security and fault alarm indication.

◆Automatic oil lubrication.

◆Diamond turning, to achieve high-precision smooth machining on the wheel surface.

3. Wheel Repair CNC Lathe Applications

◆The wheel CNC machine tool is suitable for High-precision turning and repair processing for the surface of the car wheel.

◆The wheel repair lathe has also the function of the general CNC lathes.

About Haishu Machinery

Taian Haishu Machinery Co., Ltd. is an Alloy Wheel Polishing CNC Machine designer and manufacturer dedicated in supplying automobile wheel production and repair solutions to worldwide customers. We have always worked hard to become the leader in designing and manufacturing CNC lathes since 2001.   We have more than 30 talented experts and more than 12,000 square meters of factory.

Sticking on the product development ideas of innovation, simpleness, high quality, and high efficiency, we had been always focused on CNC software development, structural design, process planning, manufacturing deployment, and quality control since the foundation in 2001. Our innovative, high-quality products include Diamond Cut Alloy Machines, brake drum lathes, customized CNC machines, Alloy Wheel Polishing CNC Machines, wheel straightening machines, alloy wheel lathe machines, alloy wheel polishing machines, rim straightening machines, brake disc lathes, and other customized CNC machines. Our Diamond Cut Alloy Machine customers are from Germany, Russia, Spain, India, South Korea, Malaysia, Singapore, Saudi Arabia, South Africa, Iran, Indonesia, Turkey, Jordan, Dubai, Poland, Morocco, Mexico, Brazil, Lebanon, Thailand, Kazakhstan, Bangladesh,  HK, Taiwan and so on.  We are looking for partners all over the world.

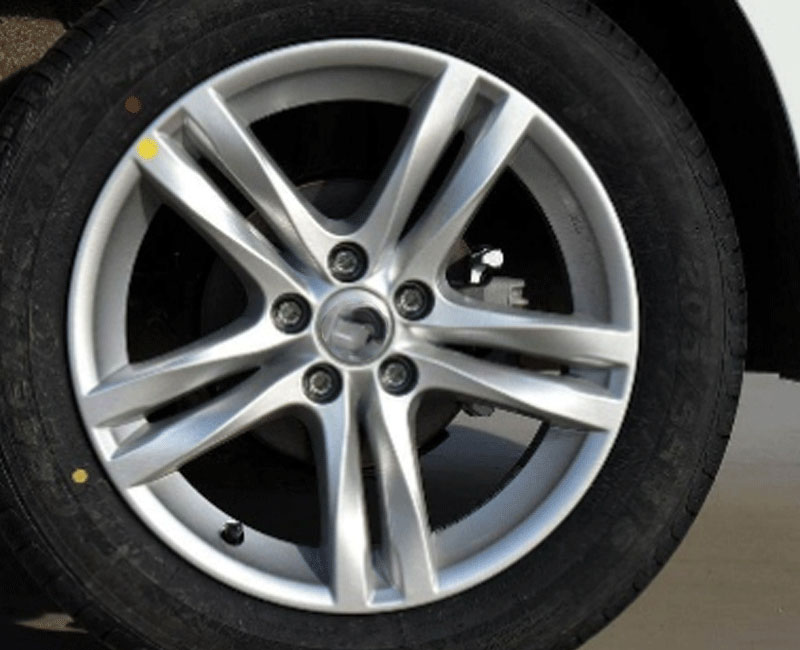

How To Repair The Wheel Hub Scratch？

 Wheel hub scratch is a relatively common wheel hub problem. In addition to affecting the appearance, if the scratches on the hub are relatively large, it will also affect the dynamic balance of the hub. At high speeds, the car shakes. Serious car accidents will occur.

Wheel hub scratches are caused mainly by hitting rocks or roadblocks. Because the wheels of the car are made of aluminum alloy. So it’s easier to get hurt. We have different methods for different Wheel hub scratches. But it needs to be processed with the help of a wheel repair machine. A precise wheel repair lathe can efficiently and perfectly repair Wheel hub scratches. The process is more complicated, and I will explain the specific procedure to you in a future article.

Wheel hub scratch often appears on the surface of the wheel hub. First, you need to remove the car wheel for cleaning. It is then installed on the wheel hub straightening machine for deformation detection and refurbishment. Then the alloy wheel lathe can detect the surface of the wheel hub by laser detection. and the software can automatically optimize the curve after the hub shape appears. The the starting point of the tool can use the laser tool setting method. At this time, the wheel hub can be processed. Start machining with a relatively small amount of cutting on a vertical hub lathe often occurs. This step observes whether the probing and the generated machining program conform to the formed surface. Then add the thickness of the cut to the shoulder pads. Different hub lathes target different hubs. So it is better to choose a slightly larger mobile hub lathe.

If it is a small Wheel Hub Scratch, it can be polished. If it is a slightly serious scratch, you can use a metal putty first, and then go through the spray polishing treatment, which can almost achieve a new feeling. There are many shops that provide mirror plating technology.

If the wheel hub is only scratched on the surface, it will only affect the appearance and will not affect the performance of the car tire. But if the primer is exposed after scratching, then you need to pay attention, the scratched position will wrinkle and the scope will continue to expand, and it will rust and corrode after a long time. If the edge of the wheel hub is scratched, it should be repaired in time. If it is serious, the tire will not be in tight contact, causing the tire to leak.

Wheel hub scratch repair process:

• Clean the wheel hub and remove stains;
• For painting and oiling, you can apply tape around the scratched part in the advance to prevent it from being mistakenly applied to other positions;
• After the hub is completely dry, smear it with water-resistant paper dipped in soapy water, polish it with a mixer, and wax it;
• The scratches on the hub can be repaired, but the premise is that the hub has not been seriously damaged. If the hub has been deformed or broken, it cannot be repaired.

Gravity casting, forging and low-pressure precision casting are the three main ways of manufacturing aluminum alloy wheels. Gravity casting has low cost and high production efficiency, but the finished product is prone to bubbles, uneven density, and insufficient surface smoothness. Although the forged products are of good quality, the manufacturing cost is high and the yield is low. The low-pressure precision casting method has good formability, clear outline, uniform density, smooth surface, controllable cost, and high yield. It is the most important way to manufacture aluminum alloy wheels today.

Wheel hub scratch repair is a complex process. If you want to do it easily, you need to use a highly automated and precise car wheel lathe. Different wheel lathes can repair wheels of different sizes, shapes, and heights. Tai’an HAISHU is a manufacturer specializing in the production and sales of wheel repair lathes. With 8 different specifications of wheel lathes, we can provide you with high-quality technical services and support. And meet more than 90% of the city’s car wheels. For our car, we all want to make it more beautiful. more different. The HAISHU brand wheel repair machine provides simple operation for everyone’s car wheel repair and saves labor costs. Make wheel repair a very simple and enjoyable thing. Hope to send inquiry to us.

 Minor wheel scratches are already a common problem faced by many private cars. Is it necessary to repair the slight scratches on the surface of the wheel hub? This topic will be discussed next. We also shared some thoughts on minor wheel scratches.

Minor wheel scratches needed to be repaired according to the situation, and a professional wheel repair lathe is required at the same time. Different wheel repair machines are used for different wheel damage repairs. We are also a professional manufacturer of wheel hub lathes.

If it’s just a slight scratch without exposed primer, there’s no need to repair it. After all, it will only affect the beauty of a small hub. In addition, the original gloss of the outline is very bright, which is difficult to find without careful observation. Whether to repair depends on the severity of the hub scratch.

If all the hubs have minor wheel scratches, they should be repaired. If they are not fixed, the damage to the hubs may be deepened, resulting in driving safety risks. The scratches left after scraping may cause the hub to oxidize and the paint on the hub to fall off, which will affect the service life of the hub over time, so the hub repair has significance.

However, Minor wheel scratches should be reminded that hub repair is not a panacea. If the scratches left by scraping are deep, it may lead to hub deformation or notches and cracks. In these severe cases, it is best to replace the hub with a new one, and safety is the most important.

The daily maintenance of the wheel hub is also essential. When the temperature of the wheel hub is high, it should be cooled naturally before cleaning. The hub can not  be  cleaned with cold water. Otherwise, the aluminum alloy wheel hub will be damaged, and even the brake disc will be deformed, affecting the braking effect. In addition, cleaning the aluminum Taijin hub with detergent at a high temperature will cause a chemical reaction on the surface of the hub, lose luster and affect its appearance.

When there is asphalt on the wheel hub that is difficult to remove, if general detergent is useless, try to remove it with a brush, but do not use a hard brush, especially an iron brush, to avoid damaging the surface of the wheel hub.

About HAISHU

HAISHU can provide you with advice and technical support on car wheel repair. At the same time, we are also a manufacturer specializing in the production and sales of wheel repair machines. The automatic repair of the wheel hub can be realized by laser detection. Our vertical hub lathes have such a good reputation all over the world. Want to know more about wheel hub lathes? Please follow our website and leave a positive comment.

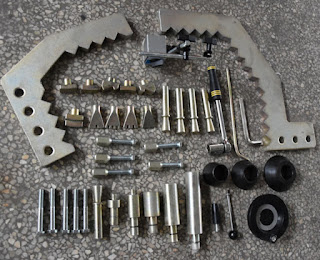

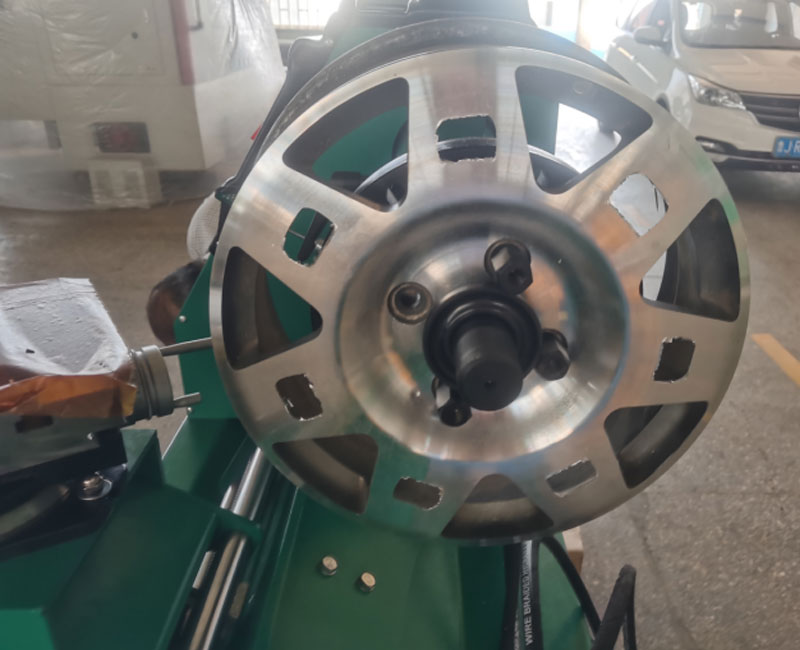

Wheel Straightening Polishing Machine RSM595 Export To Philippines

 Wheel Straightening Polishing Machine RSM595, also called a wheel shaping machine, Rim straightening Lathe machine, wheel repair machine, rim straightening lathe, or steel ring shaping machine, is specially used to repair various types of aluminum alloy wheels of distortion depression or deformation, etc. The Mobile Wheel Repair Equipment has the advantages of unique design, standard shaping effect, simple operation process, etc.  The wheel repair machine processing diameter is 10＂~26＂.

Our Philippines customer needed a rim straightening machine. He has a workshop in wheel repair, he already bought a wheel CNC lathe from us, but sometimes the customer’s wheel is seriously deformed and needs to be straightened. So He requested a Wheel Repair lathe. He also asked that the Mobile Wheel Repair Equipment realized the turning function, so that can realize the whole process with one machine. We sent him Wheel Straightening Polishing Machine RSM595 detail and operation videos. We also told him the max wheel size could reach 26 inches. He was very satisfied and told me the size was enough. After confirming the machine color needs customized to green and send me the color card. We provide a detailed quotation of the rim straightening machine RSM595. He was also very happy and said our Wheel Repair Equipment RSM595 was precisely what he needed, he arranged the payment.

A few days later, the Wheel Straightening Polishing Machine RSM595 was completed. We invited him to accept the test of the wheel repair machine. He said that he didn’t have time and had confidence in our machines. So we sent him the Mobile Wheel Repair Equipment RSM595 operate video and the completed workpieces.He was pleased to cooperate with us and hoped to continue long-term cooperation in the future.

Product features of Wheel Straightening Polishing Machine RSM595

1. Mobile Wheel Repair Equipment RSM595 is the ideal machine that can straighten

and mill the uneven places of car rims which a diameter size of 10＂~26＂.

2. Wheel Repair Equipment RSM595 is used for milling the uneven places where after welding (welding machine excluded).

3. Optional configuration: Electrical polisher, used for polishing rim surface to be smooth.

4. Hydraulic cylinder pressure: 10000kg.

Technical Parameters of Wheel Straightening Polishing Machine RSM595

Item	Technical Parameters
Machining capacity	10＂~26＂
Working pressure	10000kg
Motor power	Mechanical 0.55kw. Hydraulic 0.75kw.
Power	AC single phase 220V/ three phase 380V 50Hz
Packed size	1320×780×1420mm
NW/GW	325kg/365kg

About Haishu Machinery

Taian Haishu Machinery Co., Ltd. is a professional CNC machine designer and manufacturer dedicated to supplying automobile wheel production and repair solutions to worldwide customers. We have always worked hard to become the leader in designing and manufacturing CNC lathes since 2001.   We have more than 30 talented experts and more than 12,000 square meters of factory. Our innovative, high-quality products include a wheel CNC machine, Wheel Straightening Polishing Machine, a wheel repair machine, a brake drum lathe, and a customized CNC machine.

Sticking on the product development ideas of innovation, simpleness, high quality, and high efficiency, we had been always focused on CNC software development, structural design, process planning, manufacturing deployment, and quality control since its foundation in 2001.  Our products include Mobile Wheel Repair Equipment, wheel CNC machine, alloy wheel CNC lathe, wheel repair machine, brake drum lathe machine, wheel straightening machine, alloy wheel lathe machine, alloy wheel polishing machine, rim straightening machine, brake disc lathe, and other customized CNC machines. Our customers are from Germany,  Spain, India, South Korea, Malaysia, Singapore, Saudi Arabia, South Africa, Iran, Indonesia, Turkey, Jordan, Dubai, Poland, Morocco, Mexico, Brazil, Lebanon, Thailand, Kazakhstan, Bangladesh, and so on.

We are looking for partners all over the world.

How To Repair Wheel Scratches?

 Repair Wheel Scratches can be divided into two situations:

The first situation is that the wheel hub is slightly scratched or scratched, and the slightly scaratched wheel hub has serious and deeper scratches. In this case, the hub can be repaired. The details of the relevant fixes are as follows.

First, Repair Wheel Scratches is necessary to disassemble the hub and thoroughly clean the hub. When cleaning the hub, be sure to wipe off all the oil on the surface of the hub. Otherwise, if the painting is repaired later, the wheel repair machine will directly affect the effectiveness of the painting.

Second, use a special wheel to polish the sandpaper. After soaking in water, first, polish the scratches that have been rubbed until the scratches become particularly bright. If it is a particularly serious scratch, roughly polish it, and then use a putty Smear, smear to fill in the blanks. This is usually done multiple times to fill in the blanks. After filling, sand thoroughly with water sandpaper.

Third, spray paint directly. If the wheel repair lathe is a local paint treatment, you need to use a newspaper or a special spray cloth for protection elsewhere. After the protection, you can spray paint normally, and then apply it after spraying. Oil treatment!

Then the above can be repaired, the hub is normal, such a repair process.

In the second case, the wheel hub is particularly severely scratched, and it is obviously damaged or deformed. In this case, the wheel hub cannot continue to be used, and it can only be replaced with a new wheel hub.

Diamond Cutting Alloy Wheel CNC Lathe CK6166Q Exported To Vietnam

 Diamond Cutting Alloy Wheel CNC Lathe CK6166Q is a medium-sized wheel repair lathe.CK6166Q has a detection scanning automatic programming wheel drawing machine. Alloy Rim Repair CNC Lathe function is further improved on the basis of the original programming automatic wheel turning machine. No need for manual programming to measure curves that can be realized fully automatic. Our wheel repair lathe has fast operation speed and simple operation. Not only high efficiency but also easy to learn. Even if have no operating experience, you can quickly master the operation. Various precision indicators that meet or exceed The level of similar foreign machine tools are the first choice for the automotive industry to process wheel parts. This Alloy Wheel Surface Repair lathe CK6166Q is suitable for machining up to 22-inch wheels.

This customer has already bought a wheel CNC lathe last year, now he wanted to buy more same machine Diamond Cutting Alloy Wheel CNC Lathe CK6166Q. He felt satisfied with the size and appearance of Alloy Wheel CNC Lathe CK6166Q and was very happy with the ease of operation. Now he is very proficient in machine operation, and he recognizes our product quality and service very much, so there are not too many problems, so he decided to purchase three more wheel repair lathes. It’s just that he wanted us to give his machine a little sense of design on the sheet metal to highlight the special features of his machine, and our engineer quickly gave him a satisfactory design. He asked for a contract directly and arranged to pay the deposit.

After the Diamond Cutting Alloy Wheel CNC Lathe CK6166Q was completed, We sent them the Wheel CNC Lathe CK6166Q test video and detailed pictures. He was very satisfied.

Main features of   Diamond Cutting Alloy Wheel CNC Lathe CK6166Q

Wheel surface measurement using laser scanning, measurement can be a point, it can also be a straight line or curve；

Data is automatically stored. Program optimization can be automatic, can also be manual, and the operation is simple and free.

The spindle is the servo motor drive, synchronize belt, and machine shaft all the realization of digital drive to ensure the accuracy of the machine.

CNC system and program optimization software are developed by the company, specifically for the wheel repair, the specialty is strong and full-featured.

Wheel measurement data can be stored at random, When the same type of wheel repair, do not repeat the measurement, directly out of the program for wheel repair. System hard disk storage capacity, you can store 100,000 wheel program, the use of very convenient.

The machine uses a touch screen operation, supports a variety of national languages, and can also set the language according to customer requirements.

The wheel CNC lathe machine can be measured on the X / Z axis to achieve the machining and repair of the wheel surface and rim.

Machine specifications are complete, wheel diameter can be arbitrarily selected in the range of 5 “to 35”.

Wheel CNC lathe machine is equipped with a new full protective cover, rail sliding doors, working space is large, easy to operate.

The safety fault alarm light.

Automatic lubrication system.

Diamond cutting, to achieve the wheel surface polishing processing.

The machine can be customized according to customer requirements.

Technical Parameters of  Diamond Cutting Alloy Wheel CNC Lathe CK6166Q

Project name	Unit	Technical paramaters
Max. wheel diameter	Inch	22″
Max. workpiece length	mm	750
Probe measuring direction		X,Z
Probe needle	mm	φ3 × 40, φ6 × 50, or optional
Machning accuracy		IT6~IT7
Surface roughness	um	Ra0.8~1.6
Main transmission form		Independent spindle; frequency conversion stepless
Range of spindle speed	rpm	150~2800
Main motor power	kw	5.5
Fast-moving feed	mm/min	X – axis:5000   Z – axis:8000
Repeat positioning accuracy	mm	X – axis:0.01    Z – axis:0.015
Turret form		4 station electric turret
Repeat positioning accuracy	mm	0.008
Section of turning tool	mm	25×25
The size of the machine (L×W×H)	mm	2100×1500×1880
Net weight of the machine		2200Kg

About Haishu Machinery

Haishu Machinery has independent technology development departments to develop products in equipment production, and professional technicians with excellent services. We provide Diamond Cutting Alloy Wheel CNC Lathe CK6166Q, Wheel repair Lathe, Wheel straightening machine, brake drum lathe, etc. for automobile rear market terminal stores, and can customize the shape and color of the wheel machine and also configuration, which is welcomed and praised by large customers. Our company follows the principle of “material, material, telling the truth, truthful work”, with a flexible business model, and high-quality service to customers. Look forward to working with you！

What Does Wheel Drawing Repair Mean？

 Wheel drawing repair is a process of repairing and modifying different wheels. By grinding the product to form lines on the surface of the workpiece, the wheel will be more beautiful, three-dimensional, and individual after the drawing process. At the same time, a wheel repair lathe can relatively prolong the service life of the wheel. , rejecting the waste of replacement after the hub is damaged and has a gap.

Wheel drawing repair is a process of repairing and modifying different wheels. By grinding the product to form lines on the surface of the workpiece, the wheel will be more beautiful, three-dimensional, and individual after the drawing process. At the same time, a wheel repair machine can relatively prolong the service life of the wheel. , rejecting the waste of replacement after the hub is damaged and has a gap.

Wheel drawing repair is a kind of treatment method that has a decorative effect. wheel CNC Lathe needs to be repaired and refurbished for its surface scratches. Next, the wheel hub edge surface part is professionally reshaped and repaired with a wheel hub shaping machine. Finally, the wire drawing process is performed, and then the hub is changed into Personalize your wheels instantly with your favorite colors. Car owners usually choose brushed wheels because the brushed tires seem to have two colors, and the surface has a shiny feeling, which is full of movement.

Wheel hub, also known as rim, wheel, or tire bell, is a barrel-shaped metal part that supports the tire inside the tire and is mounted on the shaft in the center. There are many types of wheel hubs according to diameter, width, forming method, and material. Because the surface drawing treatment can reflect the texture of metal materials, it has been loved by more and more users and is more and more widely used.
