Vertical Rim Lathe was Exported To Chlie

Vertical rim lathe CKL-35, which is newly designed and manufactured by Haishuo Machinery, is a professional wheel CNC machine for repairing and maintaining alloy wheels. Our vertical rim lathe CKL-35 is equipped with a fully cast iron lathe, a self-developed special wheel repair software with automatic teaching and curve generation, non-contact laser measurement or probe contact measurement LCD touch screen. The maximum wheel machining diameter is up to 35″. The vertical lathe CKL-35 is ow cost and highly automated.

The Chilean customer needed a vertical rim lathe. Because of the maximum size of his wheels, he asked for a vertical rim lathe to process large rims. He also required vertical rim lathes for automation and ease of operation. We recommended and sent him the wheel repair lathe CKL-35 details and the operating video. We also told him that the maximum wheel size can reach 35 inches. He was very satisfied and confirmed the configuration and voltage. We offered detailed quotations for vertical rim lathes. He was also very happy and said that our Vertical Rim CNC lathe was exactly what he needed, and he quickly arranged a deposit.

A few days later, he contacted us and told us he planned to have a business trip to China and also wanted to learn the operate of vertical rim lathe. According to the agreed time, we picked him up. After seeing the rim repair machine, he was very satisfied, and he completely mastered the wheel repair machine operation in half a day. We had customized the language of the Vertical Rim CNC Lathe system and software to Spanish. He was very happy and expressed his hope that there will be more cooperation in the future.

VerticalRimLathe  CKL-35 Specifications

Item	Unit	Specifications
max.turning diameter	mm	φ1000
max.machining wheel diameter	mm	φ900
spindle speed	rpm	50-1200
main motor power	Kw	5.5
probe tool		laser or probe
machining tool size	mm	25×25
machine size	mm	2000×1500×2000
machine weight	Kg	1500

Vertical Rim Lathe  CKL-35 Features

1. Newly developed vertical rim lathe  CKL-35 by HAISHU Machinery for alloy car wheel repair and superfinishing.
2. Cast iron bed. The wheel repair CNC lathe bed is made of cast steel in vertical structure.
3. Large wheel processing diameter. The max wheel processing diameter is up to 35 “.
4. Self-developed special wheel repair control software. Automatic wheel surface measurement and program optimization can be realized simultaneously.
5. Laser non-contact measurement or probe contact measurement are optional. Laser measurement enables fast scanning.
6. Teaching function. The overall wheel surface of can be repaired, but also can be partially repaired.
7. LCD touch screen configuration
8. Compared with the horizontal structure, the mechanical transmission is more stable, the turning performance is better and the machining precision is higher.
9. Small machine tool space, professional vertical rim lathe for wheel repair.
10. Professional after-sale service including software free upgrade and remote operation and technical training on the wheel CNC machine’s LCD display.
11. High performance, cost-effective.
12. Easy to operate and maintain.

Vertical Rim Lathe  CKL-35 Configurations

• CNC system: “HAISHU” LCD touch screen CNC system
• Laser probe
• Precision spindle unit
• Z-axis dual servo motor drive
• X, Z-axis linear guide
• Precision screw vice
• Software and hardware limit
• Rail protection system
• Automatic lubrication system
• Air cooling system
• Airgun
• MPG
• Warning lights
• Full protection outer casing
• Chip removal box
• Pneumatic door
• Long jaw chuck
• 2 Station row turret
• Z safety brake

  About HAISHU Machinery

  As the professional CNC machine designer and manufacturer, Taian HAISHU Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory.  More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative CNC wheel machine products include wheel CNC machine, wheel repair machine, vertical rim lathe  CKL-35, brake drum lathe and other customized CNC machines custom CNC equipment for special requirements.
  HAISHU Machinery is not only manufacturing best quality vertical wheel lathe products but also providing custom design, fabrication and after sale service. If you have any questions or inquiries,  please fill and submit the following form, we will reply as soon as possible.

Wheel CNC Laser Probe Lathe CK6180A Was Exported To USA

Wheel CNC Laser Probe Lathe CK6180A is widely used for wheel repair, super-finishing and maintenance. This alloy CNC wheel machine has the characteristics of high quality, high precision and high efficiency.

Wheel CNC Laser Probe Lathe is composed of self-made mechanical parts such as the casting bed, spindle, fixing chuck and the feeding mechanism, the imported numerical control system, the automatic measuring system, the famous brand servo motors and the auxiliary parts like lubrication, light and cooling.

Our Wheel CNC Laser Probe Lathe CK6180A is cost-effective and space-saving. This kind of wheel CNC machine has the same technical parameters and configuration besides the maximum wheel diameter. The CNC wheel machines are widely used in automobile wheel production factories and repair shops.

Mr. Smith is from the United States and he has his own car repair shop. There are many customers need to repair their wheels using CNC wheel machine, so he wants to find a wheel repair machine to meet the customer’s requirements. He found our company on the Internet.

HAISHU is the first China company to produce and export CNC wheel repair lathe since 2005. We have produced a variety of wheel repair machine models to meet different wheel processing requirements, the max wheel diameter can be up to 35″. We introduced ourselves to Mr. Smith. After learning about our company’s information, he arranged to visit our company and he wanted to discuss with our technicians.

Usually, their maximum wheel size is less than 26 inches. So we recommended the model CK6180A Wheel CNC Laser Probe Lathe and sent him the video of the wheel lathe work. He was satisfied with the function of the wheel repair lathe. But because this is the first time he bought a machine from China, he wanted to check the machine on site. Two weeks later, he came to our factory for inspection. Mr. Smith has all types of wheel lathes in our workshop and checked the entire process of our machines. He likes this effect. We signed the contract.

Mr. Smith said he would recommend our CNC wheel lathe to his friends. We will have more and more cooperation in the future.

Wheel CNC Laser Probe Lathe CK6180A Technical Parameters

Item	Unit	Specifications
Max wheel diameter	inch	28”
Main motor power	Kw	7.5
Measuring Tool		Laser or probe (optional)
Section of a turning tool	mm	25×25
Machine size	mm	2470×1900×1750
Machine weight	Kg	2800

Wheel CNC Laser Probe Lathe CK6180A Features

◆Automatic laser scanning and fast measurement.
◆Wheel data is acquired, processed and stored automatically .
◆Self-developed CNC software, automatically program optimization.
◆ Precise and fast wheel processing.
◆Touch screen operation, support multiple languages
◆X / Z axis measurement, wheel surface and circumferential machining.
◆Three-color warning lights.
◆Automatic lubrication system.
◆Diamond cutter.
◆Wheel CNC Laser Probe Lathe CK6180A can be customized according to customer requirements.

About Haishu Machinery

Taian Haishu Machinery Co., Ltd. is the professional wheel CNC machine designer and manufacturer dedicated to supplying automobile wheel production and repair solutions to worldwide customers. We have been always worked hard to become the leader in designing and manufacturing CNC lathes since 2001.   We have more than 30 talented experts and more than 12,000 square meters factory.

Sticking on the product development ideas of innovation, simpleness, high quality and high efficiency, we had been always focused on CNC software development, structural design, process planning, manufacturing deployment and quality control since the foundation in 2001. Our innovative, high-quality products include wheel CNC machine, wheel repair machine, brake drum lathe and customized CNC machine, alloy wheel CNC lathe, wheel straightening machine, alloy wheel lathe machine, alloy wheel polishing machine, rim straightening machine, brake disc lathe and other customized CNC machines. Our customers are from Germany, Russia, Spain, India, South Korea, Malaysia, Singapore, Saudi Arabia, South Africa, Iran, Indonesia, Turkey, Jordan, Dubai, Poland, Morocco, Mexico, Brazil, Lebanon, Thailand, Kazakhstan, Bangladesh,  HK, Taiwan and so on.

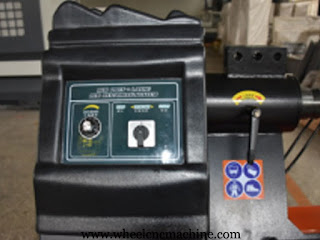

Mobile Wheel Repair Equipment RSM595 Export To Chile

Mobile Wheel Repair Equipment RSM595 is a professional wheel CNC equipment for auto repair shops. This wheel shaping machine is used to straighten and mill the wheel rim unevenness in a limited size. The high performance automatic rim straightener is easy to use and maintain. The mobile wheel repairing device RSM595 features energy saving, reasonable structure, compact layout, reliable performance and convenient maintenance.

The customer of the mobile wheel repair equipment is the brake disc and drum customer from Chile. Now he wants to buy a mobile wheel repair device. So he wants to choose a small rim straightener from us. Because the quality of the brake lathe is good, he believes in us very much. We chose the wheel repair equipment RSM595 for him and sent him a video of the mobile wheel repair equipment operation. He also wanted this wheel lathe to have a polishing function, so we customized a polishing head on the wheel repair to install on his horizontal hub shaping machine. He was very satisfied and immediately places an order, and is paid in full.

After the mobile wheel repair equipment RSM595 was completed, we sent him a photo of the rim straightener and invited him to our company for acceptance. He said he believed us and also had confidence in our mobile wheel repair equipment RSM595.

Mobile Wheel Repair Equipment RSM595 Specifications

Item	Specifications
Machining capacity	10＂~26＂
Working pressure	10000kg
Motor power	Mechanical 0.55kw. Hydraulic 0.75kw.
Power	AC single phase 220V/ three phase 380V 50Hz
Packed size	1320×780×1420mm
NW/GW	325kg/365kg

Mobile Wheel Repair Equipment RSM595 Features

• 1、Mobile Wheel Repair Equipment RSM595 is the ideal machine which can straighten and mill the uneven places of car rim which diameter size 10＂~26＂.
• 2、the Mobile Wheel Repair machine is used for mill the uneven placed where after welding (welding machine excluded).
• 3、Optional configuration: Electrical polisher, used for polishing rim surface to be smooth.
• 4、Hydraulic cylinder pressure: 10000kg.
